MT200 MOSQUITO TRAP
home>about mostrap| MT200 MOSQUITO TRAP |
MT200

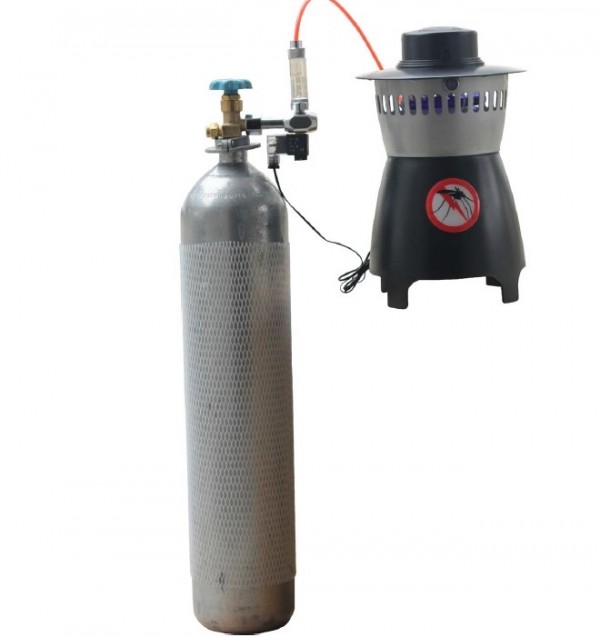

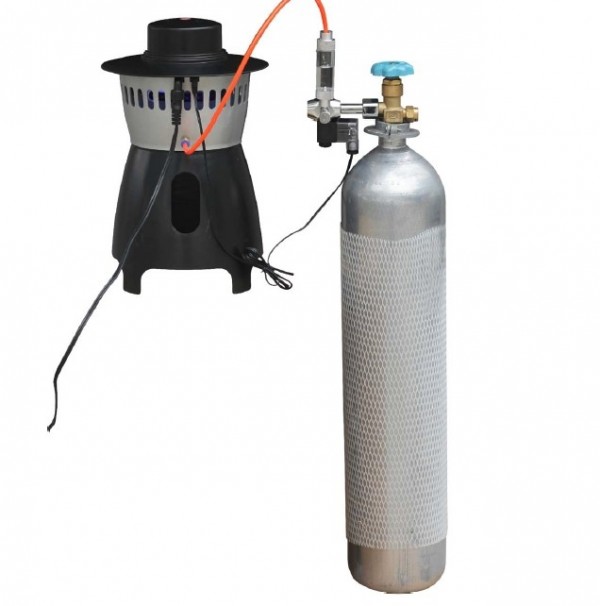

Have 10L co2 cylinder and timer, we can set the machine when to work everyday, also the regulator have valve,
we can make it release 2min and pause 2min, CO2 can last 30days
How to operate our system.
1, we refill the CO2 cylinder full with CO2
2, connect the regulator with 12vdc valve to the CO2 cylinder, and tight it.
3, connect the 12vdc valve to the MT200 machine’s inlet
4, add pure mosquito attractant (1-octen-3-ol) to Regulator’s tube
5, connect the 6mm CO2 pipe,one side to the MT200 machine’s connector,one side to the regulator’s tube,
6, connect the adapter’s output to the MT200 machine’s inlet ,and tight it
7, connect the adapter’s input to Timer
8, connect the timer to power outlet
9, set the timer
10,open the CO2 cylinder and make it release.
11.open the MT200’s switch and the system will work.
3, connect the 12vdc valve to the MT200 machine’s inlet
4, add pure mosquito attractant (1-octen-3-ol) to Regulator’s tube
5, connect the 6mm CO2 pipe,one side to the MT200 machine’s connector,one side to the regulator’s tube,
6, connect the adapter’s output to the MT200 machine’s inlet ,and tight it
7, connect the adapter’s input to Timer
8, connect the timer to power outlet
9, set the timer
10,open the CO2 cylinder and make it release.
11.open the MT200’s switch and the system will work.
